simalube accessories

A comprehensive, practice-oriented range of accessories enables the simalube lubricators to be applied without any problems. The accessories program is based on a modular system. This means that the various parts are compatible and can be combined in any way to solve any lubrication problem.

Connections









Bent connection 45°

D R 1/4
No. 290-10010

Bent connection 90°

D R1/4
No. 290-10020

Bent connection 90°, pivoted

D R1/4
No. 290-10030

Bent connection 90°, pivoted

D R 1/4
No. 290-10040

90° connection with thread and 2 nuts (only for oil)

L 70
No. 290-10050

Rotary elbow (for hose d=8 mm)

D G 1/8 G 1/4
No. 290-10070 290-10080

Connection straight

D G 3/8 G 1/2
No. 290-10100 290-10110

Fixation nipple

L 25
No. 290-10150

Reducing nipple

D G 1/8 G 1/4 M6 M8 M8x1
No. 290-10200 290-10210 290-10220 290-10230 290-10240
D M10 M10x1 M12 M12x1,5 UNF 1/4
No. 290-10250 290-10260 290-10270 290-10280 290-11210

Reducing nipple M6, heavy-duty type

D M6
No. 290-15000

Reducing nipple UNF 1/4", heavy-duty type

D UNF 1/4"
No. 290-15010

Extension

L 10 35 50 [mm]
No. 290-10210 290-10400 290-10410

Screwed connection (25 mm, 1 nut / 60 mm, 2 nuts)

L 25 60
No. 290-10450 290-10460

Y-Manifold (contains reducing nipple 1021)

D R 1/4
No. 290-10500

Quick connection coupling (for hose d=8 mm)

D G 1/4
No. 290-10600

Quick connection coupling (for hose d=8 mm)

D G 1/8 G 1/4 G 3/8
No. 290-10700 290-10710 290-10720

4-fold adapter

D G 1/2 G 1/4
No. 290-41000 290-41010

2-fold adapter

D G 1/2 G 1/4
No. 290-41020 290-41030
Lubricator accessories and miscellaneous

Non return valve (metal)

D G 1/8 G 1/4
No. 290-20200 290-20210

Connector nipple (for cleaning and filling of grease lines)

D R 1/4
No. 290-30110

Refill nipple (for refilling of simalube)

D G 1/4
No. 290-30120

Connector nipple to grease gun filler for filling lubricator

D R 1/4 R 3/8
No. 290-30130 290-30140

REFILL Cartridge (gas generator)

  15 ml 30 ml 60 ml 125 ml 250 ml
No. 220-50020 220-50040 220-50060 220-50080 220-5010

Closing nipple (plastic)

No. 290-50500

Non-return valve plug

No. 290-50600

Gasket ring

No. 290-50800











Safety accessories

Mounting support consisting of flange,connection straight R1/4 nut

No. 290-20800

Protection cover to mounting support

30-125 ml 250 ml
L 105 195 [mm]
No. 290-20810 290-20850

Protection cap

No. 290-20750 For SL 30-125 ml
No. 290-20780 For SL 250 ml

Sun protection cover

No. 290-20760 For SL 30-125 ml
No. 290-20770 For SL 250 ml
Brushes

Round brush

D x L 25 x 45 mm
No. 290-20340

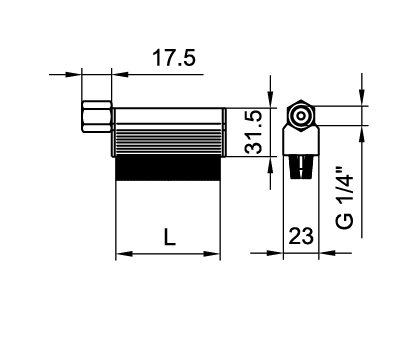

Brush with lateral connection (FN for food)

L 25 40 70 100
No. 290-20384 290-20354 290-20364 290-20374
No. - 290-20357 290-20367 290-20377

Square brushes (FN for food)

L 25 40 70 100
No. 290-20380 290-20350 290-20360 290-20370
No. 290-20385 290-20355 290-20365 290-20375

Brush 100 mm for rope lubrication

L 100
No. 290-20550

Round brush

D x L 25 x 15 mm
No. 290-20410

Elevator brush large

No. 290-20390 5-16 mm
No. 290-20440 16-32 mm

Elevator brush small

No. 290-20420 5-16 mm

Guide rail brush

No. 290-20460 40-50 mm
Installation accessories





Hose (recommended length to the lubrication point max 0.5 m) d=8/6 mm

L per meter
No. 290-20000/…m
No. 290-20020/…m (high temperature)
No. 290-20040/…m (Hose for small bend radius)

Clamp for simalube

D 50
No. 290-20100

Adapter for clamp (60 mm), Plastic

A 50 [mm]
No. 290-20120

Clamp for round brush

D 28 [mm]
No. 290-20130

Distance holder to clamp for round brush

A 15
No. 290-2014

Clamp for simalube 15

D 22
No. 290-20150

Magnetic fixture for clamps

No. 290-20190

Mounting bracket to mounting support

L 75 mm 240 mm 390 mm
No. 290-20820 290-20830 290-20840
1x 3x 5x

Bracket, universally adjustable

No. 290-28000

Bracket for simalube 15-60 ml

No. 290-20870





simalube multipoint installation components

Quick connection coupling for hose Ø 4 mm

D R 1/8 R 1/4 M5 M6
No. 290-11700 290-11710 290-11720 290-11730

Hose (recommended length to the lubrication point max. 0.5 m) Ø 4 / 2.7 mm

L per meter
No. 290-21000/…m

Fitting connection SLM (5 connections Ø 4 mm incl. retaining screws)

D 4 [mm]
No. 290-29000
Grease cartridges and oil bottles for prelubrication

Grease gun (with valve pipe)

DIN 1283
No. 290-30100

Grease cartridges (DIN 1284; 400 ml)

Grease SL 01 SL 02 SL 04 SL 06
No. 290-70010 290-70020 290-70040 290-70060
Grease SL 09 SL 10 SL 24 SL 25
No. 290-70090 290-70100 290-70240 290-70250

Oil bottle 0.5 l

Chain oil SL 14 OF 14
High temperature oil SL 15 OF 15
Machine oil SL 16 OF 16
Food industry oil SL 18 OF 18
Biodegradable chain oil SL 19 OF 19
simalube IMPULSE connect accessories

simalube IMPULSE connect

No. 230-10100

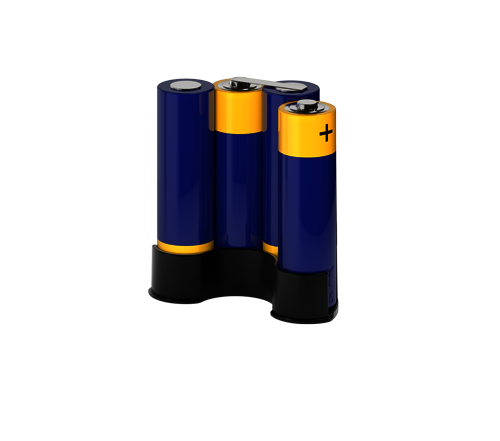

simalube IMPULSE battery pack

Power 6 V 2,3 Ah
No. 230-50000
